Skelettbau Schutzdach einer Ausgrabungsstätte

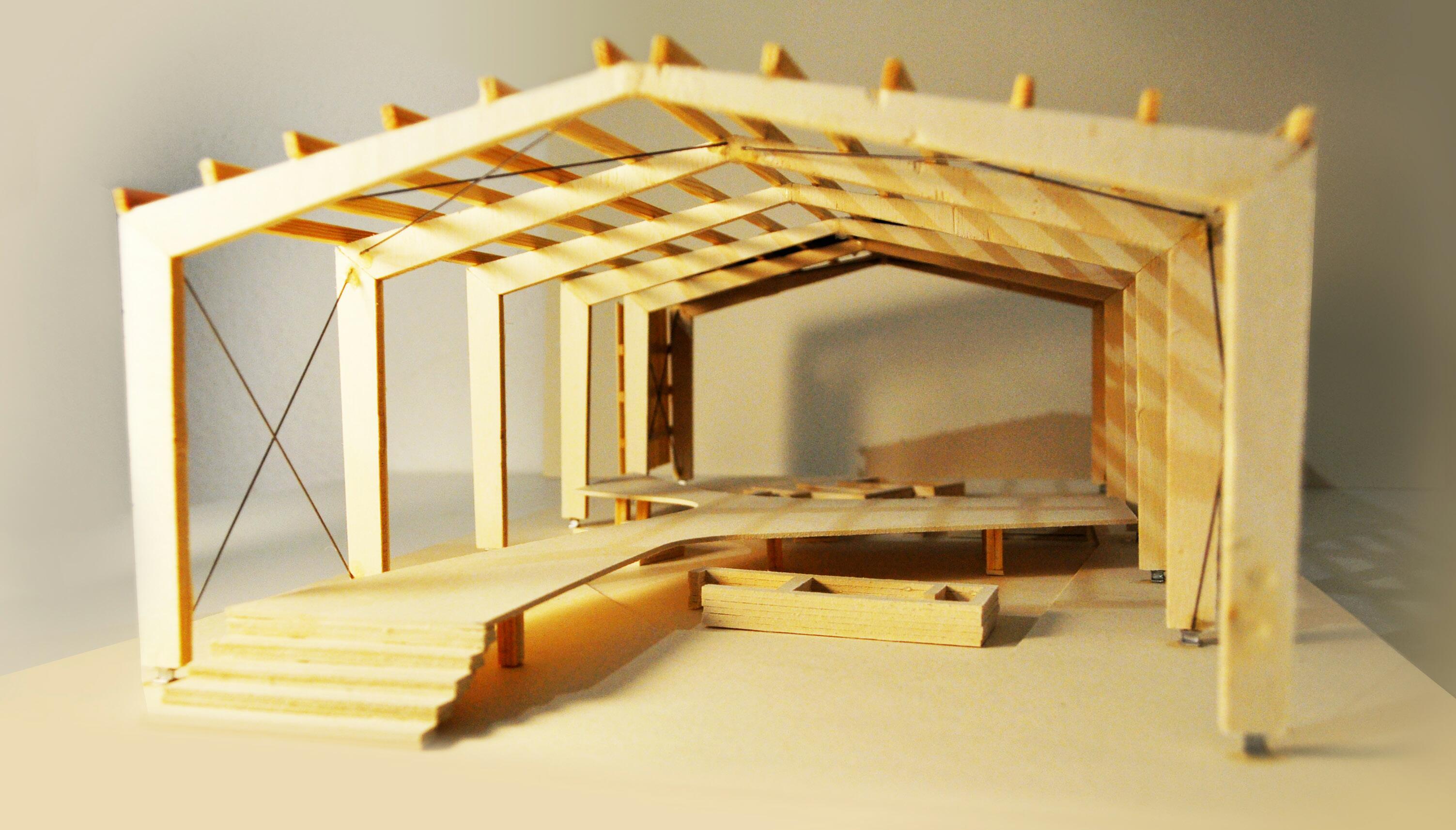

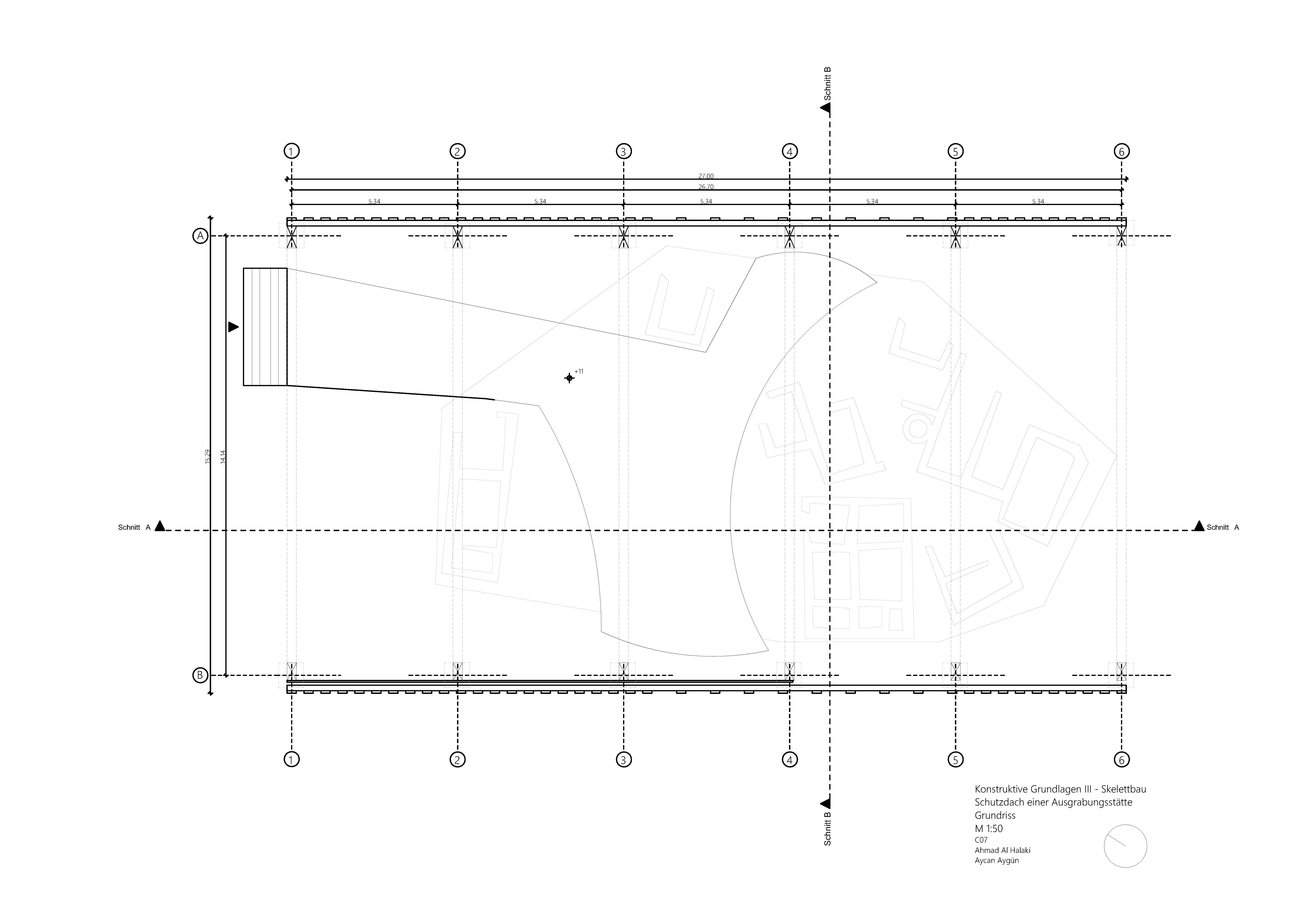

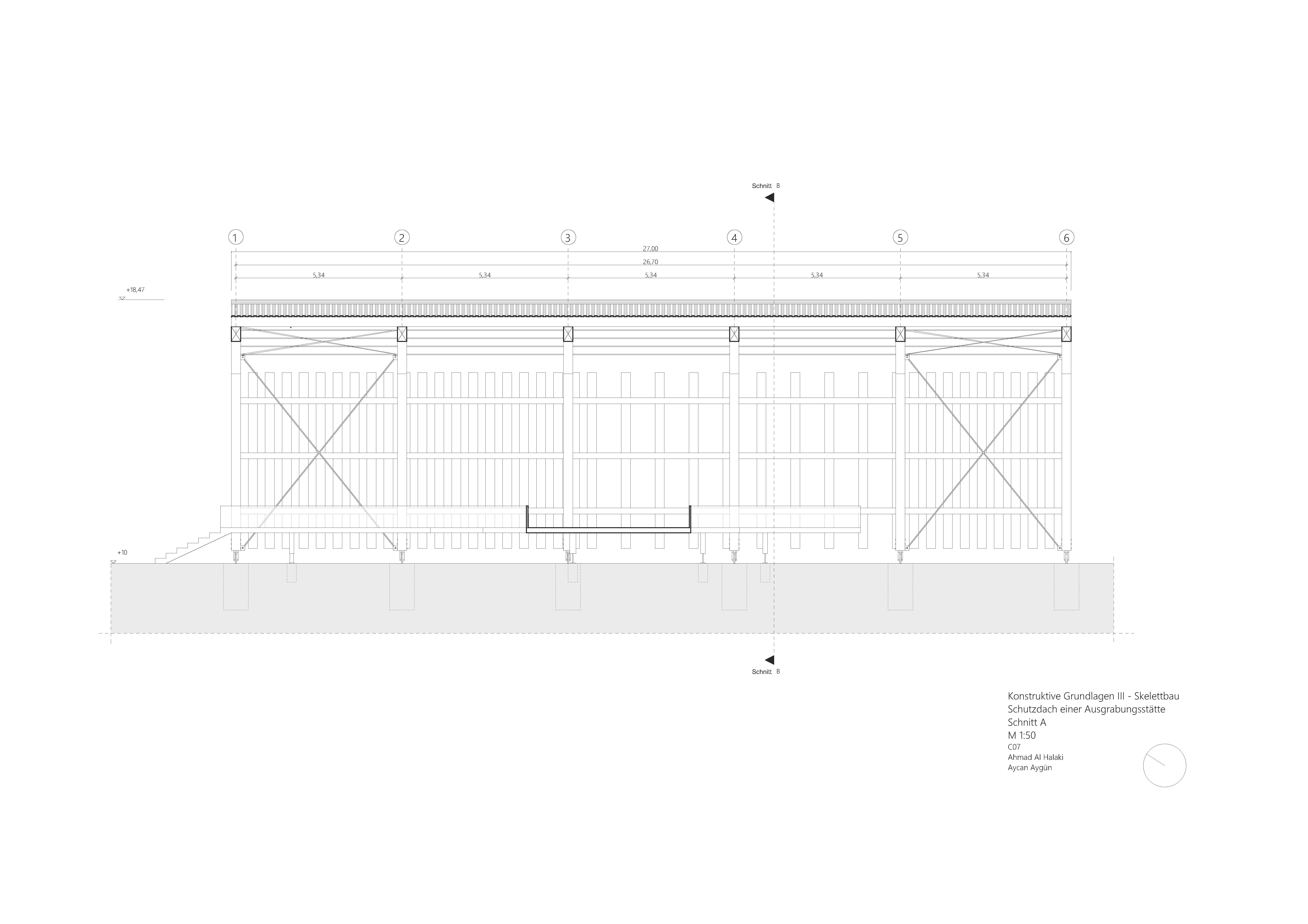

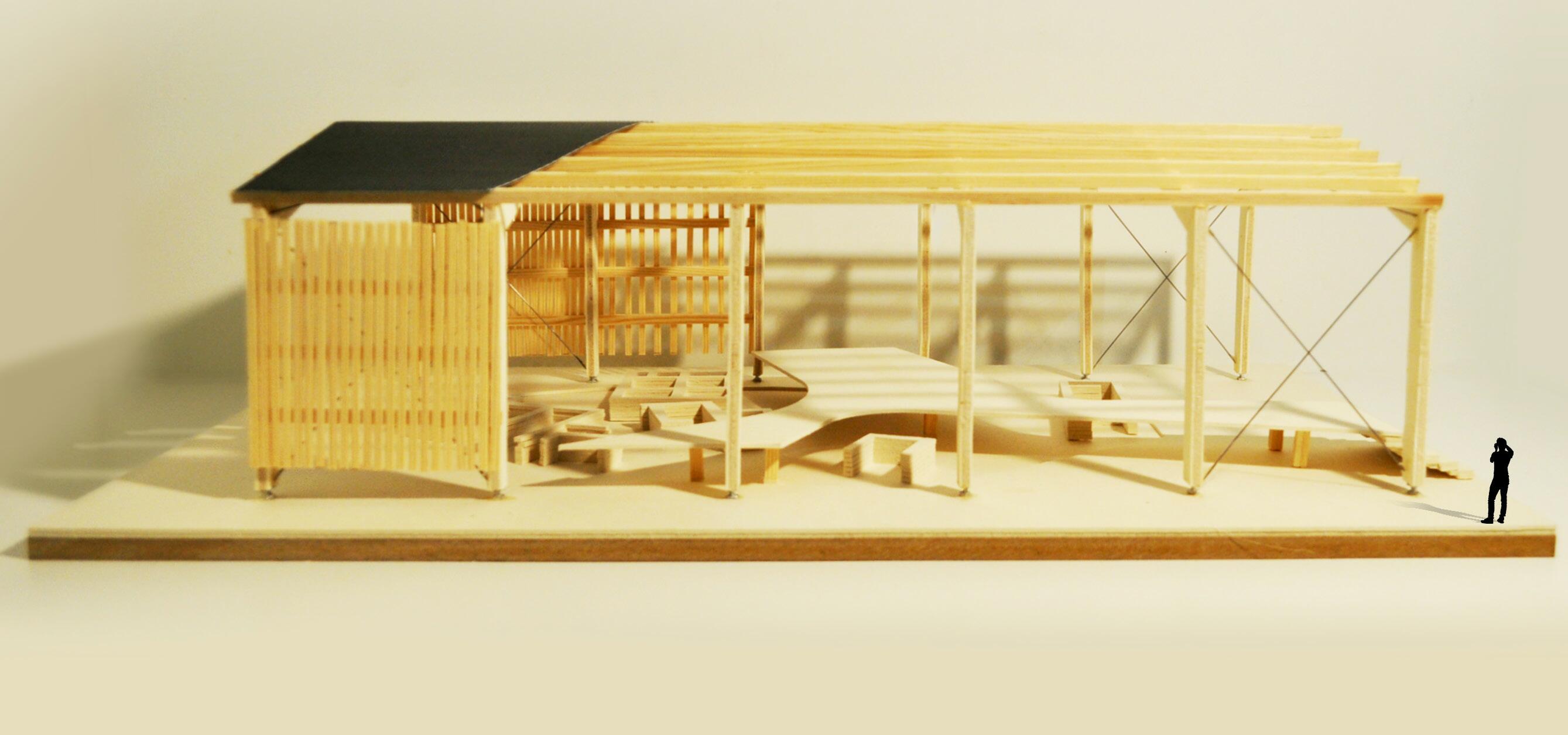

The architectural concept is implemented using a timber skeleton structure. The supporting system consists of three-hinged frames made of glued laminated timber beams with a gabled roof. The first variant features a gabled roof with a slope of 15°. The structural system comprises six (6) wooden three-hinged frames spanning 5.34 meters. In the roof plane, the secondary beams are placed as single-span beams on the main frames. The frames between axes (1–2) and (5–6) are braced on both sides with diagonal braces.
